DB14.0042

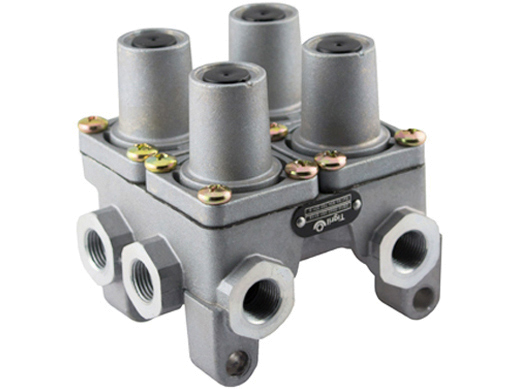

4-circuit protection valve 20 bar
Main Oem :001.431.68.06
Remarks :934.702.221.0

Reference No 000.431.78.06 001.431.04.06 001.431.35.06 001.431.38.06 001.431.47.06 001.431.68.06 001.431.77.06 001.431.78.06 001.431.84.06 002.431.04.06 002.431.04.36 002.431.29.06 002.431.35.66 002.431.93.06 004.431.35.06

Criteria

SpecificationValues
Thread Measurement 1:M16 x 1,5
Thread Measurement 2:M22 x 1,5
Operating pressure to [bar]:10
Opening pressure (21) [bar]:7
Opening pressure (22) [bar]:7
Opening pressure (23) [bar]:7
Opening pressure (24) [bar]:7
Closing pressure (21) [bar]:5
Closing pressure (22) [bar]:5
Closing pressure (23) [bar]:5
Closing pressure (24) [bar]:5
